GENTEC R34 Series Dual Stage Regulator

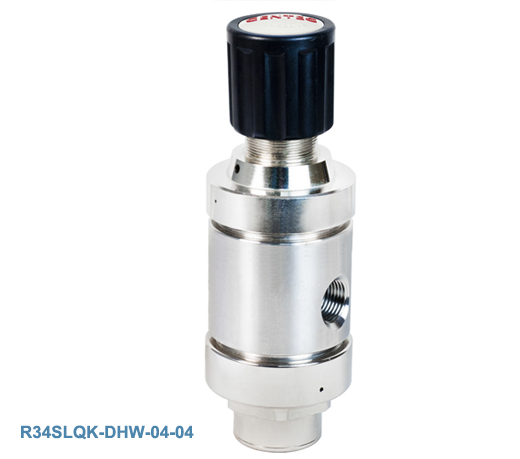

R34 Series Dual Stage Regulator
GENTEC R34SL Series Regulator is a diaphragm-sensed dual-stage high purity regulator designed for applications where a consistent outlet pressure and flow are desired.
Features
Dual-Stage Configuration
Metal-to-Metal Seal
Inlet & Outlet Port Size: 1/2" NPT( F )
Dimensions
GENTEC R34 Series Dual Stage Regulator
Flow Data
GENTEC R34 Series Dual Stage Regulator

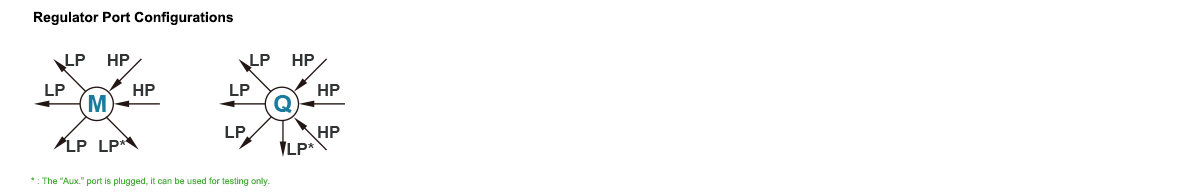

Ordering Information
订购指南
EX: R34SL
Series		 M
Body Ports		 K
Seat		 - D
Inlet Pressure Range		 G
Outlet Pressure Ranges		 W
Gauge		 - 04
Inlet Connections		 - 04
Outet Connections		 - R
Options
R34SL
M
Q
K: PCTFE
V: Vespel®
D: 3000 psi ( 206 bar )
F: 500 psi ( 35 bar )
G: 0-250 psi ( 17 bar )
H: 0-150 psi ( 10 bar )
I: 0-100 psi ( 7 bar )
J: 0-75 psi ( 5.2 bar )
K: 0-50 psi ( 3 bar )
L: 0-25 psi ( 1.5 bar )
P: psi / bar
K: psi / kPa
W: No Gauge
04: 1/2" NPT( F )

Other connections available*
04: 1/2" NPT( F )

Other connections available*
P: Panel Mount
R: Relief Valve
H: Hastelloy® Diaphragm

*: More inlet connection options such as DIN, BSP, CGA, and JIS.


Industry application
Widely used in photovoltaic, petroleum and petrochemical, laboratory, hydrogen energy, automobile, etc industry More
