GENTEC R30 Series Dual Stage Regulator
R30 Series Dual Stage Regulator
GENTEC R30 Series Dual Stage High Purity Diaphragm Regulator designed for applications where a consistent outlet pressure and flow are desired. The R30 series is designed for applications where size is a concern. The small footprint is ideal for gas chromatography, gas detection equipment, and emission monitoring systems.
Features
Dual-Stage Configuration
Metal-to-Metal Seal
Inlet Port Size: 1/4" NPT( F )
Outlet Port Size: 1/8" NPT( F )
1.5" Pressure Gauge

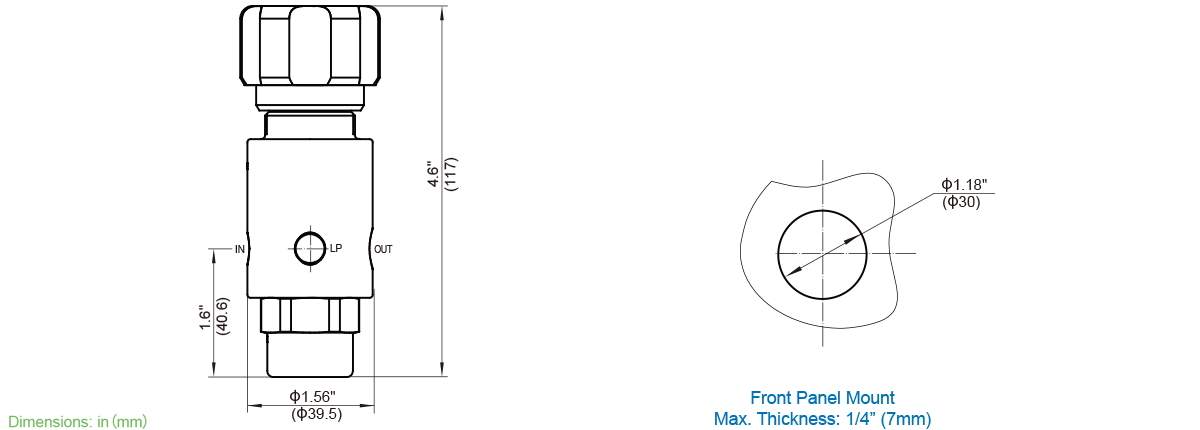

Dimensions
GENTEC R30 Series Dual Stage Regulator
Flow Data
GENTEC R30 Series Dual Stage Regulator
Ordering Information
订购指南
EX: R30SL
Series		 Q
Body Ports		 T
Seat		 - D
Inlet Pressure Range		 I
Outlet Pressure Ranges		 P
Gauge		 - 00
Inlet Connections		 - 20
Outet Connections		 - R
Options
R30SL
M
Q
T: PTFE
D: 3000 psi ( 206 bar )
H: 0-150 psi ( 10 bar )
I: 0-100 psi ( 7 bar )
K: 0-50 psi ( 3 bar )
L: 0-25 psi ( 1.5 bar )
P: psi / bar
K: psi / kPa
W: No Gauge
00: 1/4" NPT( F )
C180: CGA180
C170: CGA170
C165: CGA165
C330: CGA330
C350: CGA350
C580: CGA580
C660: CGA660
C590: CGA590
52: G5/8"-RH ( F )
63: W21.8-14RH ( F )
64: W21.8-14LH ( F )
Other connections available*
20: 1/8" NPT( F )
10: 1/8" GENLOK
11: 1/4" GENLOK
15: 6 mm GENLOK
16: 8 mm GENLOK
74: 1M8 x 1RH( M )
Other connections available*
P: Panel Mount
R: Relief Valve( For "Q" body configuration only )

*: More inlet connection options such as DIN, BSP, CGA, and JIS.


Industry application
Widely used in photovoltaic, petroleum and petrochemical, laboratory, hydrogen energy, automobile, etc industry More
