 GENTEC R31 Series Dual Stage Regulator
R31 Series Dual Stage Regulator
GENTEC R31 Series Regulator is a diaphragm-sensed dual-stage high purity regulator designed for applications where a consistent outlet pressure and flow are desired.
Features
Dual-Stage Configuration
Metal-to-Metal Seal
Inlet & Outlet Port Size: 1/4" NPT( F )
2" Pressure Gauge

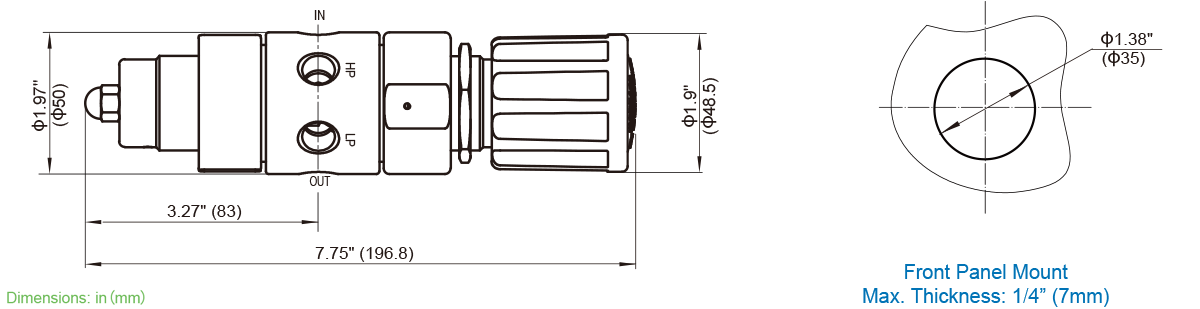

Dimensions
GENTEC R31 Series Dual Stage Regulator
Flow Data
 GENTEC R31 Series Dual Stage Regulator

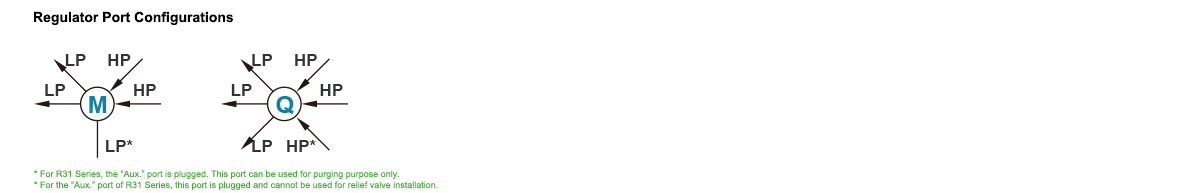

Ordering Information
订购指南
EX: R31SL
Series
M
Body Ports
K
Seat
- D
Inlet Pressure Range
I
Outlet Pressure Ranges
K
Gauge
- C350
Inlet Connections
- 11
Outet Connections
- D
Options
R31SL
M
Q
K: PCTFE
C: 4500 psi ( 310 bar )
D: 3000 psi ( 206 bar )
G: 0-250 psi ( 17 bar )
I: 0-100 psi ( 7 bar )
K: 0-50 psi ( 3 bar )
L: 0-25 psi ( 1.5 bar )
Q: 30" Hg Vac-30 psi ( 2 bar )
S: 30" Hg Vac-100 psi ( 7 bar )
T: 30" Hg Vac-200 psi( 14 bar )
P: psi / bar
K: psi / kPa
W: No Gauge
00: 1/4" NPT( F )
C330: CGA330
C350: CGA350
C580: CGA580
C660: CGA660
C590: CGA590
DN05: DIN477 No.5
BS02: BS341 No.2
Other connections available*
00: 1/4" NPT( F )
01: 1/4" NPT( M )
10: 1/8" GENLOK
11: 1/4" GENLOK
15: 6 mm GENLOK
16: 8 mm GENLOK
14B: 1/4" Hose Barb
Other connections available*
Blank: None
D: Diaphragm Valve
N: Needle Valve
P: Panel Mount
R: Relief Valve
H: Hastelloy® Diaphragm
DU:Dursan 2x coating
SI:Silconert coating

*: More inlet connection options such as DIN, BSP, CGA, and JIS.
