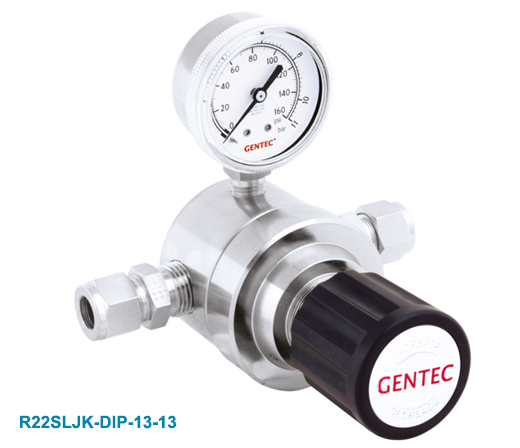

| EX: | R22SL
Series |
J
Body Ports |
K
Seat |
- F
Inlet Pressure Range |
G
Outlet Pressure Ranges |
K
Gauge |
- 13
Inlet Connections |
- 13
Outet Connections |
P Options |
|---|---|---|---|---|---|---|---|---|---|
| R22SL |
A B G J M Q |
K: PCTFE |
D: 3000 psi ( 206 bar ) F: 500 psi ( 35 bar ) |
G: 0-250 psi ( 17 bar ) I: 0-100 psi ( 7 bar ) K: 0-50 psi ( 3 bar ) L: 0-25 psi ( 1.5 bar ) Q: 30" Hg Vac-30 psi ( 2 bar ) S: 30" Hg Vac-100 psi ( 7 bar ) T: 30" Hg Vac-200 psi( 14 bar ) |
P: psi / bar K: psi / kPa W: No Gauge |
04: 1/2" NPT( F ) 05: 1/2" NPT( M ) 13: 1/2" GENLOK 15: 6 mm GENLOK 16: 8 mm GENLOK 18: 12 mm GENLOK Other connections available* |
04: 1/2" NPT( F ) 05: 1/2" NPT( M ) 13: 1/2" GENLOK 15: 6 mm GENLOK 16: 8 mm GENLOK 18: 12 mm GENLOK Other connections available* |
Blank: None P: Panel Mount H: Hastelloy® Diaphragm |
*: For more connection options contact Gentec.
