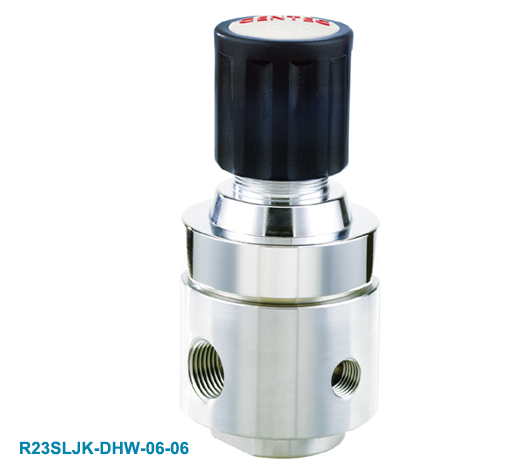

GENTEC R23 Series Medium Flow Regulator
R23 Series Medium Flow Regulator
GENTEC R23 Series Regulator is a diaphragm-sensed single-stage "High Purity-style" regulator, designed for applications where high flow is desired. Available in stainless steel.
Features
Single-Stage Configuration
Metal-to-Metal Seal
Inlet & Outlet Port Size: 3/4" NPT( F )
2" Pressure Gauge
Dimensions
GENTEC R23 Series Medium Flow Regulator
Flow Data
GENTEC R23 Series Medium Flow Regulator
Ordering Information
订购指南
EX: R23SL
Series		 J
Body Ports		 K
Seat		 - D
Inlet Pressure Range		 I
Outlet Pressure Ranges		 W
Gauge		 - 06
Inlet Connections		 - 06
Outet Connections		 - D
Options
R23SL ( 316L )
R23SH( Hastelloy® Diaphragm and Valve Stem )
A
B
G
J
M
K: PCTFE
D: 3000 psi ( 206 bar )
F: 500 psi ( 35 bar )
H: 0-150 psi ( 10 bar )
I: 0-100 psi ( 7 bar )
J: 0-75 psi ( 5 bar )
L: 0-25 psi ( 1.5 bar )
M: 0-15 psi ( 1 bar )
W: No Gauge
06: 3/4" NPT( F )
Other connections available*
06: 3/4" NPT( F )
Other connections available*
P: Panel Mount
H: Hastelloy® Diaphragm

*: More inlet connection options such as DIN, BSP, CGA, and JIS.


Industry application
Widely used in photovoltaic, petroleum and petrochemical, laboratory, hydrogen energy, automobile, etc industry More
