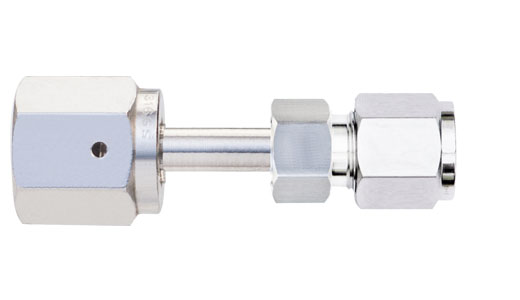

VMFC 系列 FSR 内螺纹转卡套接头
优势特点
采用 316, 316L 或者 316L VAR 的不锈钢材质
经 BA 或者 EP 处理
产品在 10~100 级无尘室清洁处理
尼龙袋双层密封包装
| 接头类型 | FSR 规格 | 卡套管规格 | 订购型号 | A | C | D | E | F | G | G1 | 压力等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|
FSR 内螺纹转卡套接头
|
1/4 in. 1/4 in. 1/4 in. 1/4 in. 1/2 in. |
1/8 in. 1/4 in. 3/8 in. 1/2 in. 1/2 in. |
SS-VMFC-VSF4-TF2 SS-VMFC-VSF4-TF4 SS-VMFC-VSF4-TF6 SS-VMFC-VSF4-TF8 SS-VMFC-VSF6-TF8 |
1.94 in. 1.94 in. 1.97 in. 2.14 in. 2.23 in. |
0.59 in. 0.70 in. 0.76 in. 0.86 in. 0.86 in. |
0.49 in. 0.60 in. 0.66 in. 0.90 in. 0.90 in. |
0.18 in. 0.18 in. 0.18 in. 0.18 in. 0.40 in. |
1/2 in. 1/2 in. 5/8 in. 13/16 in. 13/16 in. |
3/4 in. 3/4 in. 3/4 in. 3/4 in. 1-1/16 in. |
7/16 in. 9/16 in. 11/16 in. 7/8 in. 7/8 in. |
8000 psi 8000 psi 4300 psi 4300 psi 4300 psi |
