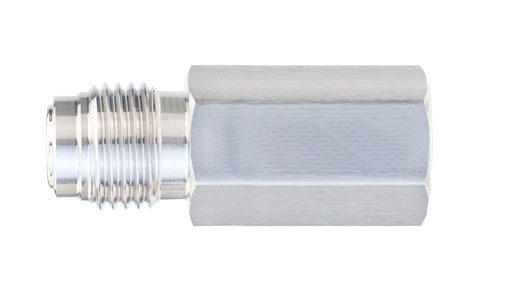

VMC 系列 FSR 外螺纹转 FNPT 接头
优势特点
采用 316, 316L 或者 316L VAR 的不锈钢材质
经 BA 或者 EP 处理
产品在 10~100 级无尘室清洁处理
尼龙袋双层密封包装
| 接头类型 | FSR 规格 | FNPT 规格 | 订购型号 | E | F | A | 压力等级 |
|---|---|---|---|---|---|---|---|
FSR 外螺纹转 FNPT 接头
|
1/4 in. 1/4 in. 1/4 in. 1/2 in. 1/2 in. 3/4 in. 1 in. |
1/8 in. 1/4 in. 3/8 in. 3/8 in. 1/2 in. 3/4 in. 1 in. |
SS-VMC-VM4-FNT2 in. SS-VMC-VM4-FNT4 in. SS-VMC-VM4-FNT6 in. SS-VMC-VM8-FNT6 in. SS-VMC-VM8-FNT8 in. SS-VMC-VM12-FNT12 in. SS-VMC-VM16-FNT16 in. |
0.18 in. 0.18 in. 0.18 in. 0.40 in. 0.40 in. 0.62 in. 0.87 in. |
5/8 in. 9/16 in. 7/8 in. 15/16 in. 1-1/16 in. 1-5/16 in. 1-5/8 in. |
1.41 in. 1.54 in. 1.54 in. 1.76 in. 1.99 in. 2.36 in. 2.51 in. |
6500 psi 6500 psi 4300 psi 4300 psi 4300 psi 3700 psi 3000 psi |
