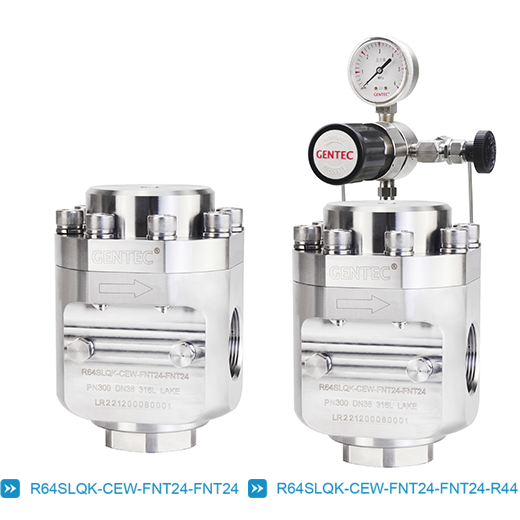

GENTEC R64 Series Dome Loaded Regulator
R64 Series Dome Loaded Regulator
GENTEC R64 Series Dome-loaded regulator provides high performance with superb pressure stability. Suitable for high flow and pressure sensitive applications.
Features
Dome-Loaded Regulator
Soft Sealing between Body and Diaphragm
Body Inlet Connection: 1.5" NPT ( F )
2" Pressure Gauge
Pressure Gauge Connection: 1/4" NPT ( F )
External Pressure Source Connection: 1/4" NPT ( F )
Dimensions
GENTEC R64 Series Dome Loaded Regulator
Flow Data
GENTEC R64 Series Dome Loaded Regulator
Ordering Information
订购指南
EX: R64SL
Series		 Q
Body Ports		 K
Seat Material		 - C
Inlet Pressure		 E
Outlet Pressure		 W
Gauge		 - FNT24
Inlet Connections		 - FNT24
Outlet Connections		 - R21
Options
• R64SL Q K: PCTFE
Y: EPDM
 C: 4500 psi (310 bar)
D: 3000 psi (206 bar)
E: 1500 psi (103 bar)
F: 500 psi (34 bar)
 E: 0-1500 psi (103 bar)
F: 0-500 psi (34 bar)
G: 0-250 psi (17 bar)
H: 0-150 psi (10 bar)
 P: psi / bar
K: psi / kPa
W: No Gauge
 FNT24: 1.5" NPT (F)
Other connections
available*
FNT24: 1.5" NPT (F)
Other connections
available*
None: Without Regulator
R44: With R44 Pilot Regulator
(Outlet Pressure 500~1500 psi )
R21: With R21 Pilot Regulator
(Outlet Pressure < 500 psi )

*: More inlet connection options such as DIN, BSP, CGA, and JIS.



Industry application
Widely used in photovoltaic, petroleum and petrochemical, laboratory, hydrogen energy, automobile, etc industry More
