GENTEC R51 Series Corrosion Resistant Regulator
R51 Series Corrosion Resistant Regulator
GENTEC R51 Series Corrosion-Resistant Single-Stage Regulator is diaphragm-sensed and especially designed for applications where corrosive and toxic gases are used.
Features
Single-Stage Configuration
Metal-to-Metal diaphragm to body seal & dual layer sealing ring
Integrated waste gas disposal connection for additional safety
Inlet & Outlet Port Size: 1/4” FSR(F)

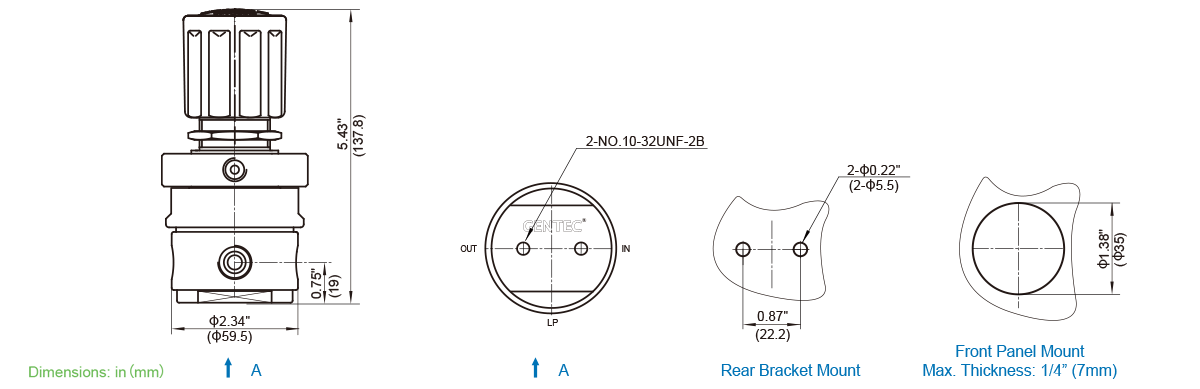

Dimensions
Dimensions
Flow Data
Flow Data
Ordering Information
订购指南
EX: R51SL
Series		 G
Body Ports		 K
Seat Material		 - D
Inlet Pressure		 I
Outlet Pressure		 K
Gauge		 - 90
Inlet Connections		 - 90
Outet Connections		 - P
Options
R51SL (316L)
R51H ( C-22 )
A
B
G
J
M
K: PCTFE
D: 3000 psi ( 206 bar )
F: 500 psi (34 bar) 		F: 0-500 psi (34 bar)
G: 0-250 psi ( 17 bar )
H: 0-150 psi ( 10 bar )
I: 0-100 psi ( 7 bar )
K: 0-50 psi ( 3 bar )
L: 0-25 psi ( 1.5 bar )
P: psi / bar
K: psi / kPa
W: No Gauge
90: Internal 1/4" FSR( F )
Other connections available*
90: Internal 1/4" FSR( F )
Other connections available* 		Blank: None
P: Panel Mount

*: More inlet connection options such as DIN, BSP, CGA, and JIS.

Industry application
Widely used in photovoltaic, petroleum and petrochemical, laboratory, hydrogen energy, automobile, etc industry More
Download
Catalog
2D
3D
