| 类 别 | 型 号 | 最大进气压力 | 工作温度 | 进出气连接 | 设定压力 | 调压范围 |
|---|---|---|---|---|---|---|

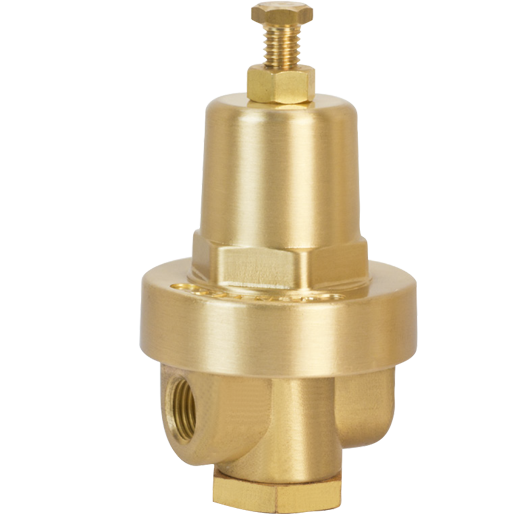

LC851
|
LC851-125 LC851-300 |
3.8 MPa (550 psi) 3.8 MPa (550 psi) |
-196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) |
1/4" NPT(F) 1/4" NPT(F) |
0.86 MPa (125 psi) 2.1 MPa (300 psi) |
0.17~1.7 MPa (25~250 psi) 0.85~2.4 MPa (125~350 psi) |
|
LCE851
|
LCE851-22 LCE851-70 LCE851-140 LCE851-325 |
3.8 MPa (550 psi) 3.8 MPa (550 psi) 3.8 MPa (550 psi) 3.8 MPa (550 psi) |
-196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) |
1/4" NPT(F) 1/4" NPT(F) 1/4" NPT(F) 1/4" NPT(F) |
0.15 MPa (22 psi) 0.50 MPa (70 psi) 0.97 MPa (140 psi) 2.24 MPa (325 psi) |
0.07~1.03 MPa (10~150 psi) 0.07~1.03 MPa (10~150 psi) 0.07~1.03 MPa (10~150 psi) 1.03~2.40 MPa (150~350 psi) |
|
LCC851
|
LCC851-22 LCC851-300 LCC851-325 LCC851-22-A LCC851-300-A LCC851-325-A |
3.8 MPa (550 psi) 3.8 MPa (550 psi) 3.8 MPa (550 psi) 3.8 MPa (550 psi) 3.8 MPa (550 psi) 3.8 MPa (550 psi) |
-196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) -196 ℃~80 ℃ (-320℉~176℉) |
1/4" NPT(F) 1/4" NPT(F) 1/4" NPT(F) 1/4" NPT(F) 1/4" NPT(F) 1/4" NPT(F) |
0.15 MPa (22 psi) 2.1 MPa (300 psi) 2.24 MPa (325 psi) 0.15 MPa (22 psi) 2.1 MPa (300 psi) 2.24 MPa (325 psi) |
0.07~1.03 MPa (10~150 psi) 1.03~2.4 MPa (150~350 psi) 1.03~2.4 MPa (150~350 psi) 0.07~1.03 MPa (10~150 psi) 1.03~2.4 MPa (150~350 psi) 1.03~2.4 MPa (150~350 psi) |
