IGS DV01 Series LOTO Diaphragm Valve
IGS DV01 Series LOTO Diaphragm Valve
DV01 Series LOTO Diaphragm Valve is developed for use with integrated gas systems (IGS).
Features
Assembled and packaged for Ultra-high purity semiconductor applications
Compact Design
LOTO Handle (Lock-out-tag-out handle)
Cobalt-based superalloy diaphragm
100% Helium-leak tested
1.125″ C-Seal or 1.125″ W-Seal
Dimensions
Dimensions

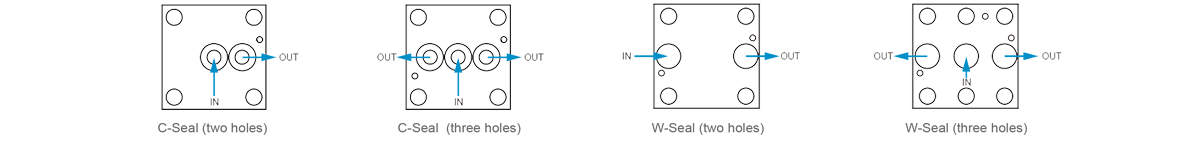

Inlet and Outlet
Inlet and Outlet
Ordering Information
EX: SLVV
Body		 - DV01
Series Number		 M
Actuation		 - 11C2
Connection Type		 - W
Knob Color		 - S1
Process Standard
SLV: 316L VAR
SLVV: 316L VIM VAR
 DV01
 M: Manual
 11C2: 1.125" C-Seal, two holes
11C3: 1.125" C-Seal, three holes
11W2: 1.125" W-Seal, two holes
11W3: 1.125" W-Seal, three holes
……
Other connection styles are available
 W: Anodized Natural Color
B: Anodized Blue
R: Anodized Red
Blank: Anodized Black
 S1: Ultra-high purity process
