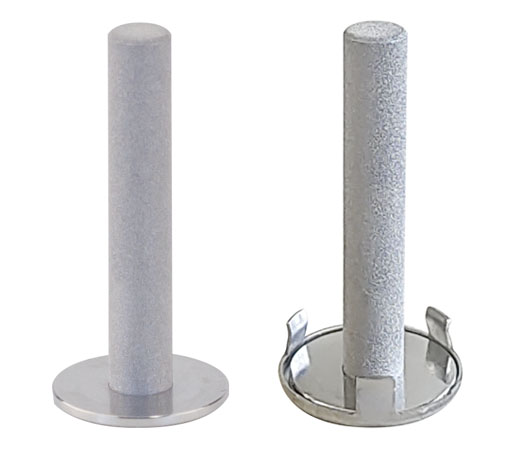

GKF Series Gasket filters
GENTEC® GKF Series Gasket filters are compact, all-metal filters designed to protect sensitive gas components, such as regulators and valves, from particle damage. These filters are suitable for pplications with temperatures up to 400°C (752°F) and provide an effective, economical safeguard against contamination that can negatively affect the performance and longevity of critical components.
Features
Material: 316L (Filter element, Gasket)
Filtration accuracy: The removal rate of all particles with a diameter greater than 0.3μm is over 95%
Maximum Differential Pressure: P1: 5.1 MPa
P2: 10.4 MPa
Maximum Temperature： 400oC
There are retainer styles available for selection.
