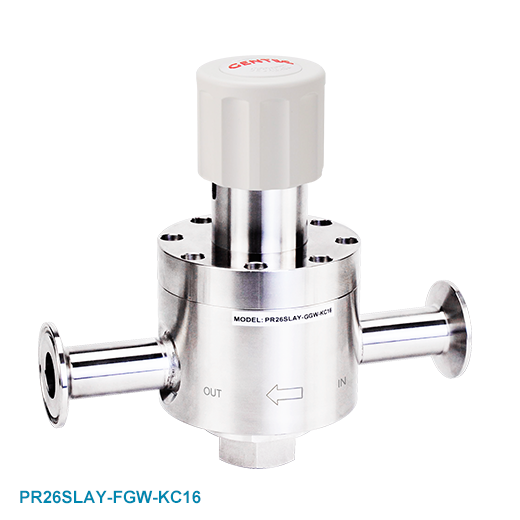

PR26 Series Regulartor
PR26 series regulator is a diaphragm pressure regulators that complies with the USP Class VI and ASME BPE design standards for pharmaceutical manufacturing. It is suitable for applications in the food, biotechnology and pharmaceutical industries.
Features
Single-stage pressure reduction structure
Complies with CGA 4.1 and ASTM G93 cleanliness requirements

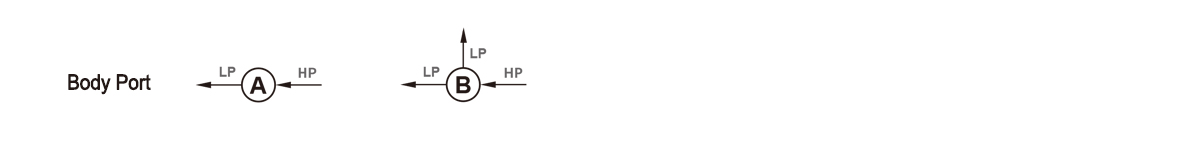

Valve body pressure gauge connection: VF4 (1/4 inch VCR female thread)

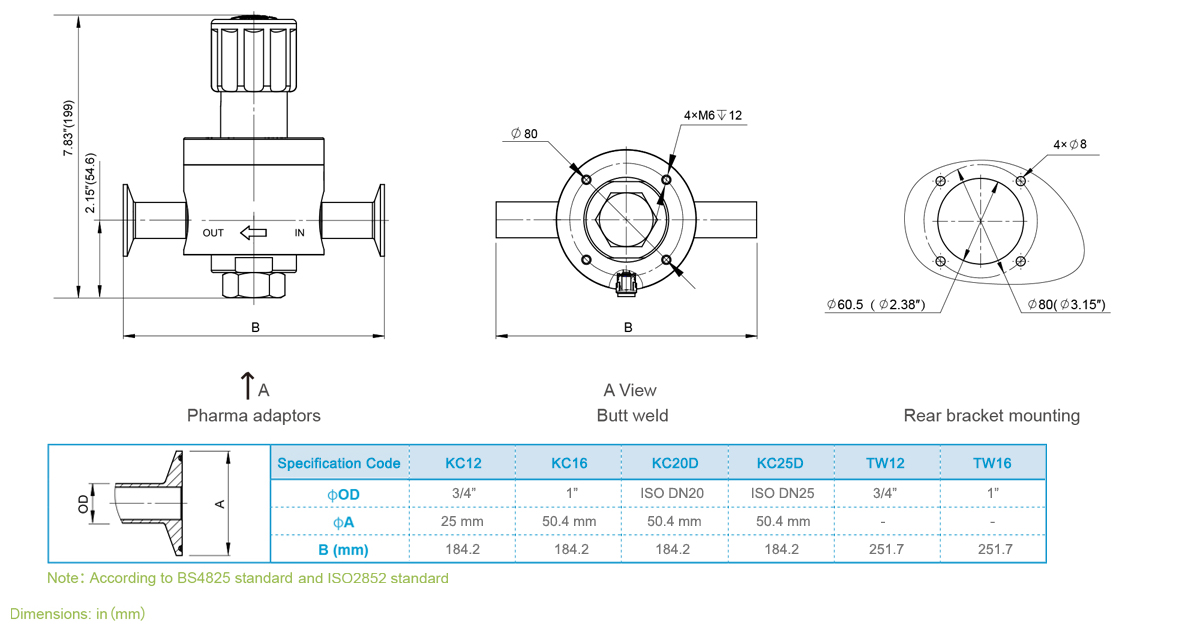

Inlet and outlet connections: pharma adaptors, butt weld, flanges
Safety pressure: 1.5 times the maximum input pressure
Wetted surface: Ra 15 μin
Weight: 5.7 kg
