Manifold Pipings

Manifold Pipings

Header extension consists of a gas delivery pipe and header valves. It is expandable for different application requirements.

Features

Machined with class "A" brass stock

Silver brazing on piping joints for maximum leak prevention

Maximum working pressure: 3000 psi

Inlet (Header valve): Fuel Gas-CGA 510
Other gases-CGA540

Outlet: 1" -11-1/2NPS

Ordering Information

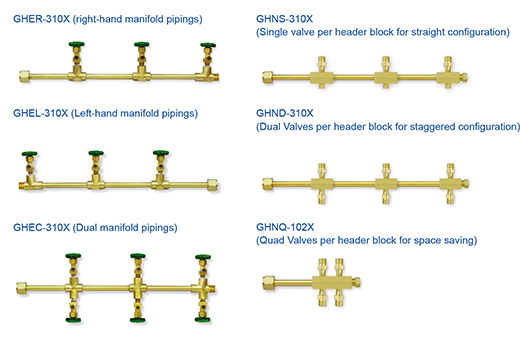

GH Series	E Valve Type	R Piping Shape & Layout joints	- 3 No. of Joints	10 Joints Spacing	X Gas Service
GH	E: Globe Valve	R: Right-hand manifold pipings L: Right-hand manifold pipings C: Dual manifold pipings	2: Two Joints 3: Three Joints 4: Four Joints 5: Five Joints ...	02: 1.5″ (40 mm) 05: 5″ (127 mm) 10: 10″ (254 mm) 13: 13″ (330 mm) 18: 18″ (457 mm) (Does not apply to "C" Piping Shape.)	X: Oxygen Y: Acetylene F: Propane C: Carbon Dioxide IN: Argon, Nitrogen, Helium Q: Air
GH	N: Check valve	S: Single joint manifold pipings D: Dual joints manifold pipings Q: Quad joints manifold pipings	2: Two Joints 3: Three Joints 4: Four Joints 5: Five Joints ...	02: 1.5″ (40 mm) 05: 5″ (127 mm) 10: 10″ (254 mm) 13: 13″ (330 mm) 18: 18″ (457 mm) (Does not apply to "C" Piping Shape.)	X: Oxygen Y: Acetylene F: Propane C: Carbon Dioxide IN: Argon, Nitrogen, Helium Q: Air
