GENTEC R77 Series Back Pressure Regulator
R77 Series Back Pressure Regulator
GENTEC R77 Series Back Pressure Regulator is a diaphragm-sensed single-stage high purity regulator designed for applications where a constant back pressure is desired.
Features
Single-Stage Configuration
Inlet & Outlet Port Size: 1/4" NPT( F )

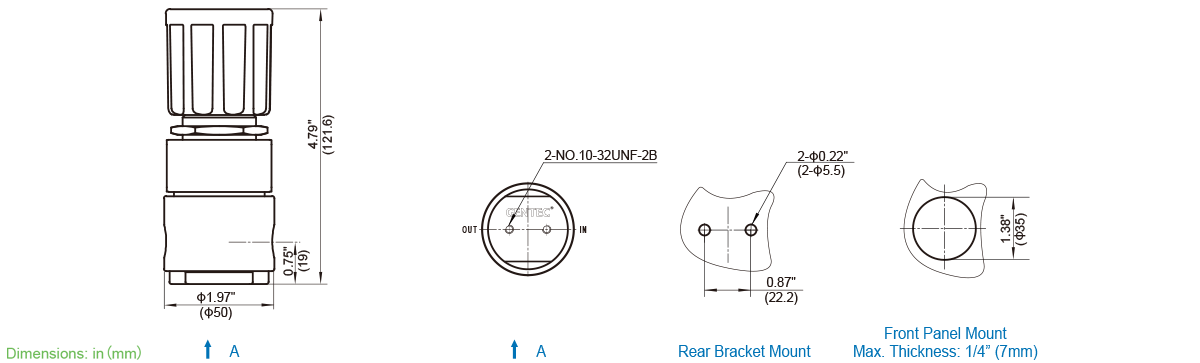

Dimensions
GENTEC R77 Series Back Pressure Regulator
Flow Data
GENTEC R77 Series Back Pressure Regulator
Ordering Information
订购指南
EX: R77SL
Series		 A
Body Ports		 K
Seat Material		 - G
Inlet Pressure		 W
Gauge		 - 00
Inlet Connections		 - 00
Outlet Connections		 - P
Options
R77B (Brass)
R77SL (316L) 		A
K: PCTFE
T: PTFE
G: 0-250 psi (17 bar)
H: 0-150 psi (10 bar)
I: 0-100 psi (7 bar)
K: 0-50 psi (3 bar)
L: 0-25 psi (1.5 bar)
W: No Gauge
00: 1/4" NPT( F )
00: 1/4" NPT( F )
Blank: None
P: Panel Mount
Industry application
Widely used in photovoltaic, petroleum and petrochemical, laboratory, hydrogen energy, automobile, etc industry More
