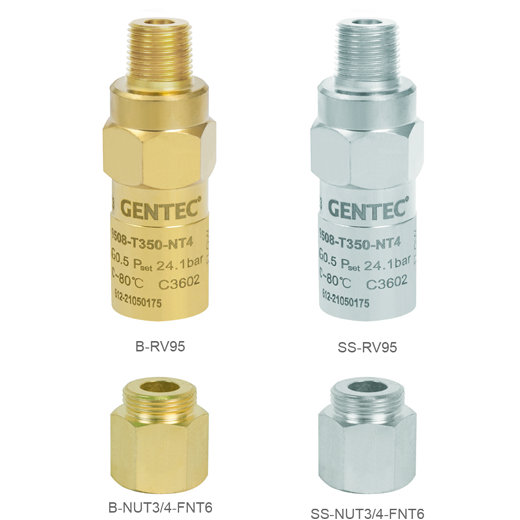

RV95 Series Cryogenic Relief Valves
This safety valve is specifically designed for cryogenic gases, and can be used for pipeline systems, cryogenic cylinders, or small cryogenic tanks. When the pressure in the system surpasses the preset pressure value, the valve will automatically start relieving excess pressure.
Features
Valve opens on preset value and reseats below 95%
Operating Temperature
Fluorosilicone: 14 ~ 176ºF (-10 ~ 80ºC)
PTFE: -320 ~ 176ºF (-196 ~ 80ºC)
Fluorosilicone: 14 ~ 176ºF (-10 ~ 80ºC)
PTFE: -320 ~ 176ºF (-196 ~ 80ºC)
Available Set Pressure: 22 ~ 500 psi (1.5 ~ 34.5 bar)
Conforms to CGA G-4.1 for cleaning components
Constructed with oxygen compatible materials
