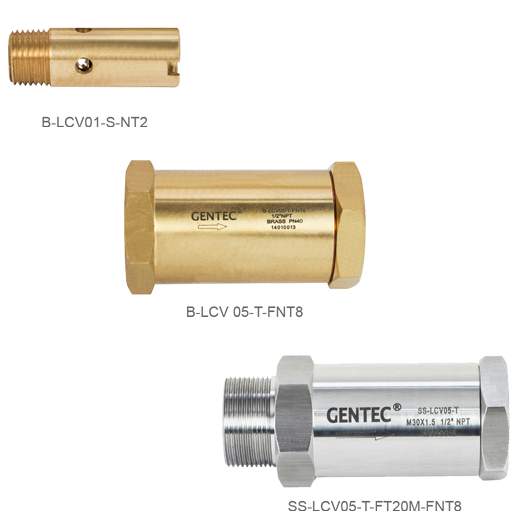

LCV Series Check Valves
Suitable for cryogenic liquefied natural gas bottles or other containers, effectively restricts flow in one direction.
Features
Gas Sevice：LNG, LO2, LN2, LAr, Non-corrosive gases
Suitable temperature: -320 ~ 176°F ( -196 ~ 80°C)
pening pressure: ≦ 5 psi (0.34 bar)
Design working pressure: 230 psi (16 bar)
LCV01 Series Check Valves Max. working pressure: 360 psi (25 bar)
LCV05 Series Check Valves Max. working pressure: 870 psi (60 bar)
LCV05 Series Check Valves Max. working pressure: 870 psi (60 bar)
Cleaned for oxygen service per CGA 4.1
