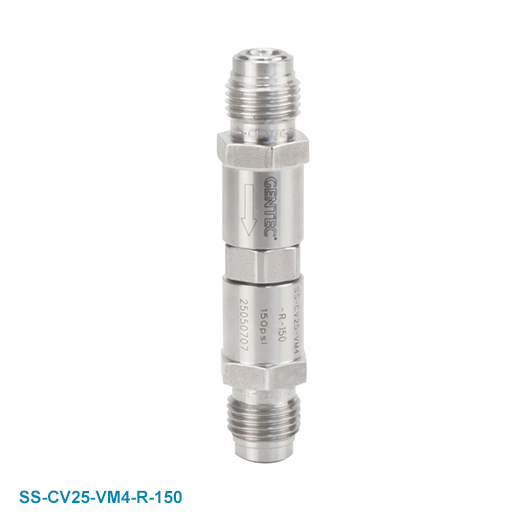

CV25 SERIES CHECK VALVES
CV25 series is an adjustable check valve engineered to ensure unidirectional flow and prevent media
backflow in medium-to-high pressure gas systems. Designed for applications where precise flow direction control
is essential, it is widely used in laboratories, instrumentation systems, chemical production, and high-pressure test
equipment.
Features
Maximum operating pressure: 3000 psi (207 bar)

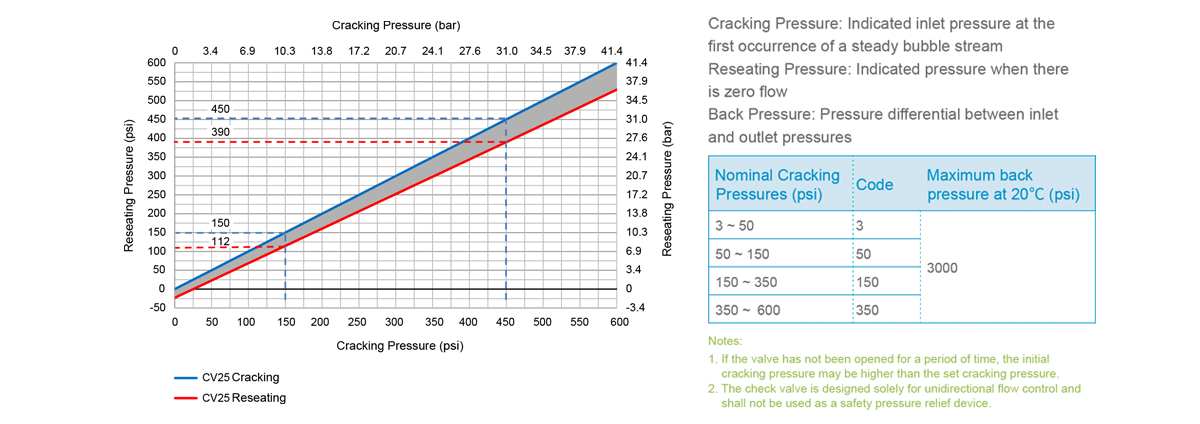

Nominal opening pressure adjustable from 3 to 600 psi
Inlet & Outlet Connection: FSR, NPT and GENLOK
Optional 316 stainless steel or brass material
Check valves are tested for opening and re-sealing performance with leak detection fluid during production
Cleanliness: Complies with the product cleanliness requirements specified in ASTM G93 Class C
