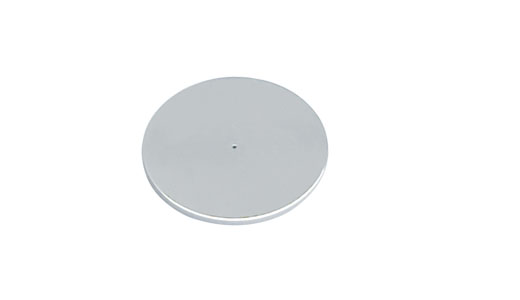

Mirror Gasket (with flow-limiting holes)
Mirror Gasket (with flow-limiting holes)
Features
VGE: Mirror Gasket (Stainless Steel) with flow-limiting holes
VGS: Mirror Gasket (Nickel) with flow-limiting holes
Fittings are cleaned, bagged individually in nylon bags, and heat-sealed
The inner bag is then placed in a polyethylene outer bag and heat-sealed in a class 100 clean room to meet this stringent demands of the semi-conductor industry
Dimensions
Dimensions
Ordering Information
Gasket Type FSR Size Ordering Number E A TX
VGE
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
SS-VGE-FSR4-01
SS-VGE-FSR4-015
SS-VGE-FSR4-02
SS-VGE-FSR4-025
SS-VGE-FSR4-03
SS-VGE-FSR4-04
SS-VGE-FSR4-05
SS-VGE-FSR4-06
SS-VGE-FSR4-07
SS-VGE-FSR4-08
SS-VGE-FSR4-09
SS-VGE-FSR4-10
SS-VGE-FSR4-12
SS-VGE-FSR4-13
SS-VGE-FSR4-14
SS-VGE-FSR4-15
SS-VGE-FSR4-17
SS-VGE-FSR4-19
SS-VGE-FSR4-20
SS-VGE-FSR4-25
SS-VGE-FSR4-30
0.00394 in.
0.00591 in.
0.00787 in.
0.00984 in.
0.01181 in.
0.01575 in.
0.01969 in.
0.02362 in.
0.02756 in.
0.03150 in.
0.03543 in.
0.03937 in.
0.04724 in.
0.05118 in.
0.05512 in.
0.05906 in.
0.06693 in.
0.07480 in.
0.07874 in.
0.09843 in.
0.11811 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
VGS
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
1/4 in.
NI-VGS-FSR4-01 in.
NI-VGS-FSR4-015 in.
NI-VGS-FSR4-02 in.
NI-VGS-FSR4-025 in.
NI-VGS-FSR4-03 in.
NI-VGS-FSR4-04 in.
NI-VGS-FSR4-05 in.
NI-VGS-FSR4-06 in.
NI-VGS-FSR4-07 in.
NI-VGS-FSR4-08 in.
NI-VGS-FSR4-09 in.
NI-VGS-FSR4-10 in.
NI-VGS-FSR4-12 in.
NI-VGS-FSR4-13 in.
NI-VGS-FSR4-14 in.
NI-VGS-FSR4-15 in.
NI-VGS-FSR4-17 in.
NI-VGS-FSR4-19 in.
NI-VGS-FSR4-20 in.
NI-VGS-FSR4-25 in.
NI-VGS-FSR4-30 in.
0.00394 in.
0.00591 in.
0.00787 in.
0.00984 in.
0.01181 in.
0.01575 in.
0.01969 in.
0.02362 in.
0.02756 in.
0.03150 in.
0.03543 in.
0.03937 in.
0.04724 in.
0.05118 in.
0.05512 in.
0.05906 in.
0.06693 in.
0.07480 in.
0.07874 in.
0.09843 in.
0.11811 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.03 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
0.47 in.
Industry application
Widely used in semiconductor industry More
Also applied to photovoltaic industry More
