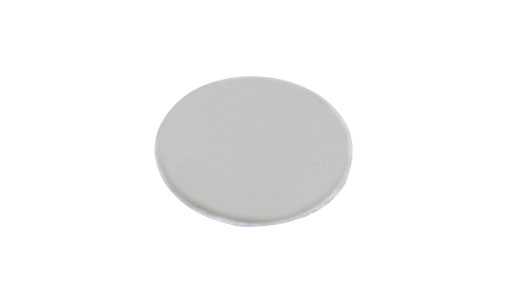

Blind Gasket

Features

VG: Silver Plated (Stainless Steel) Blind Gasket
VGE: Mirror (Stainless Steel) Blind Gasket
VGS: Mirror (Nickel) Blind Gasket

Fittings are cleaned, bagged individually in nylon bags, and heat-sealed

The inner bag is then placed in a polyethylene outer bag and heat-sealed in a class 100 clean room to meet this stringent demands of the semi-conductor industry

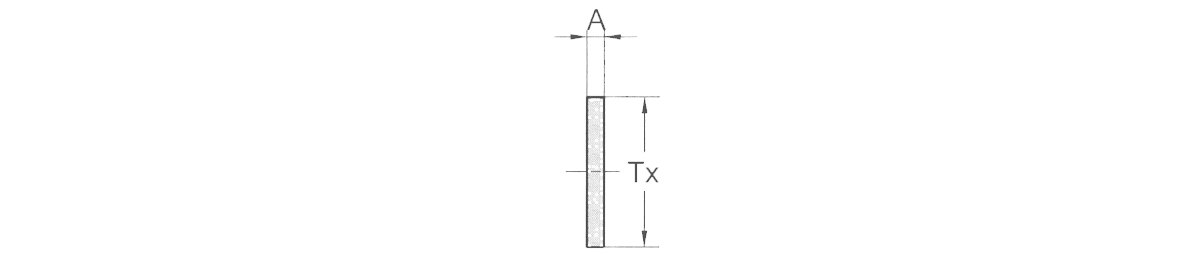

Dimensions

Ordering Information

Gasket Type	FSR Size	Ordering Number	E	A	TX
VG-*-BL	1/4 in. 1/2 in. 3/4 in. 1 in.	SS-VG-FSR4-BL SS-VG-FSR8-BL SS-VG-FSR12-BL SS-VG-FSR16-BL	0.22 in. 0.44 in. 0.66 in. 0.89 in.	0.028 in. 0.028 in. 0.028 in. 0.028 in.	0.47 in. 0.78 in. 1.14 in. 1.40 in.
VGE-*-BL	1/4 in. 1/2 in. 3/4 in. 1 in.	SS-VGE-FSR4-BL SS-VGE-FSR8-BL SS-VGE-FSR12-BL SS-VGE-FSR16-BL	0.22 in. 0.44 in. 0.66 in. 0.89 in.	0.028 in. 0.028 in. 0.028 in. 0.028 in.	0.47 in. 0.78 in. 1.14 in. 1.40 in.
VGS-*-BL	1/4 in. 1/2 in. 3/4 in. 1 in.	NI-VGS-FSR4-BL NI-VGS-FSR8-BL NI-VGS-FSR12-BL NI-VGS-FSR16-BL	0.22 in. 0.44 in. 0.66 in. 0.89 in.	0.028 in. 0.028 in. 0.028 in. 0.028 in.	0.47 in. 0.78 in. 1.14 in. 1.40 in.
