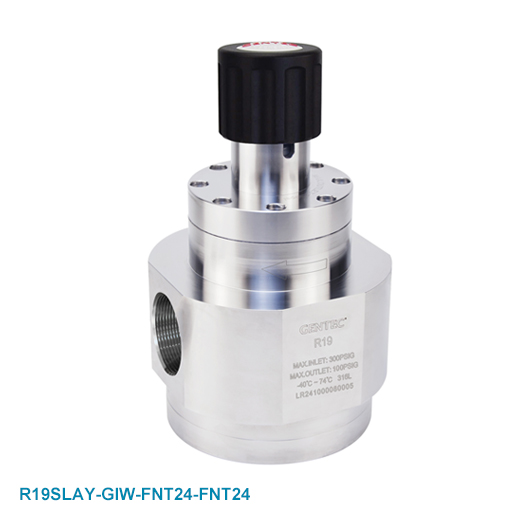

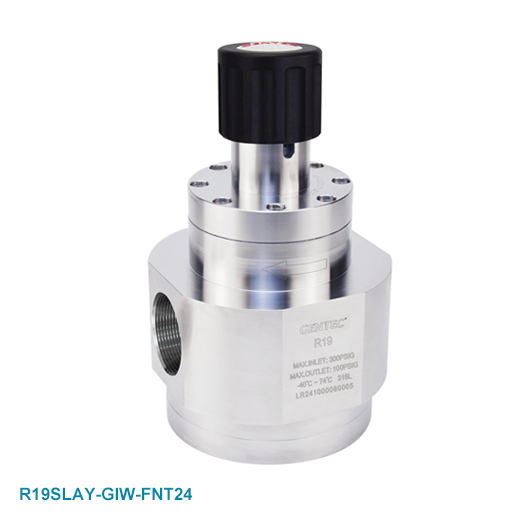

R19 Series High Flow Regulator
R19 Series regulator is a diaphragm-type, single-stage pressure regulator that delivers stable outlet
pressure, designed for applications requiring low outlet pressure and high flow rates.
Features
Single-stage Diaphragm Type Regulator
Pressure Gauge Interface: 1/4” NPT (F)
Inlet & Outlet Connection: 1-1/2” NPT (F)
Max. Inlet Pressure: 300 psi
Max. Outlet Pressure: 6, 15, 25, 50, 75, 100, 150, 250 psi
Safety Test Pressure: 1.5X Maximum Inlet Pressure
Wetted Surface: Ra 15μin
